Description
Master of Lights offers versatile usage options. You can assign scenes or actions to MIDI notes and play them like a synthesizer, or configure CV, MIDI CC modulations, and other internal sources to control the lights. You can even combine both methods for maximum flexibility.

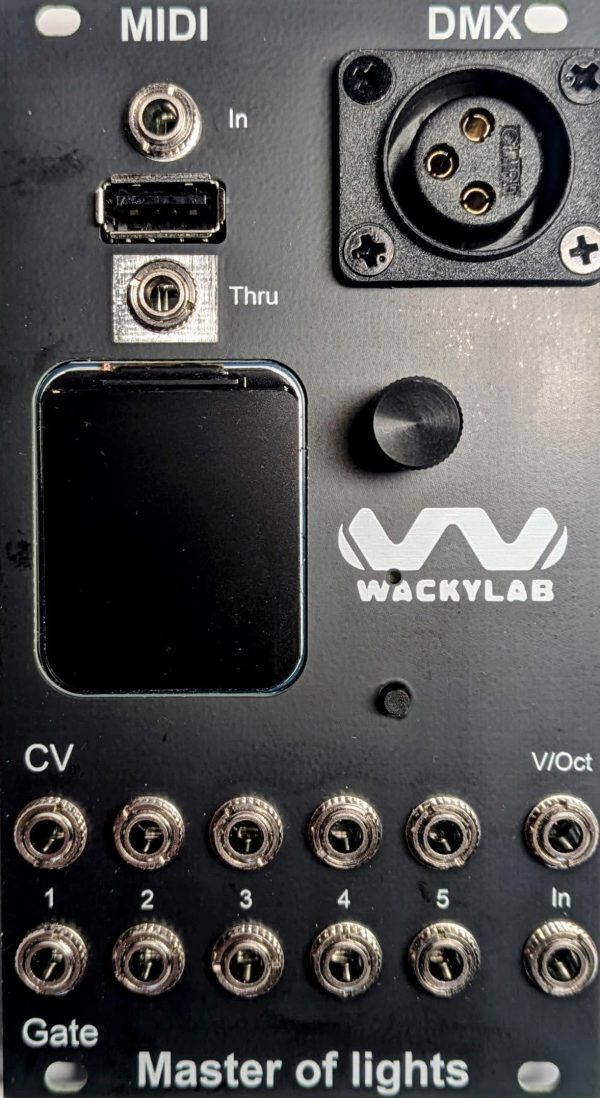

- Interfaces:
- 5 CV (0V-5V), 5 Gate,1 V/oct inputs for analog control.
- MIDI type B input, MIDI type B thru
- USB host port for MIDI input or to connect to the Korg nanoKontrol2.
- DMX output for controlling lighting devices.
- Key Features:
- Define and control up to 48 lights, each with up to 12 DMX channels.
- Assign up to 6 modulation points per light. (Mod : enveloppe, random, velocity, MIDI CC, CV ).
- Save and recall configurations across 64 presets.
- Define the state of a light with actions, and trigger these actions via MIDI notes or CV/Gate inputs.
- Trigger between 1 to 8 actions per scene for complex lighting setups.
- Scenes, like actions, can also be triggered via MIDI notes or CV/Gate inputs.
- Each CV input features an envelope follower, allowing dynamic control of your lighting based on incoming audio signals.
- A dedicated MIDI performance channel allows you to assign any MIDI note to a scene
- Enhanced editing and patch creation with the Korg nanoKontrol2 USB controller.
- Compact design: 14HP width, 25mm depth.
- Power consumption: +12V, 110mA.
- Optimization:
- Optimized for controlling GarageCube LED bars with dedicated functions addressing up to 512 DMX channels from a single action.
- Editing:
- Autonomous editing via a built-in encoder.
- Designed for optimized interaction with the Korg nanoKontrol2 USB controller.
Advantages:
- It is possible to declare the same physical device multiple times by creating multiple lights config. This allows for modulating or controlling this DMX device in different ways.
Applications:
- Live Performances: Responsive and interactive DMX control for dynamic light shows. Use to precisely synchronize lights and music.
- Lighting Installations: Easy configuration and management of lighting installations.
Included Accessories:
- Eurorack power cable
